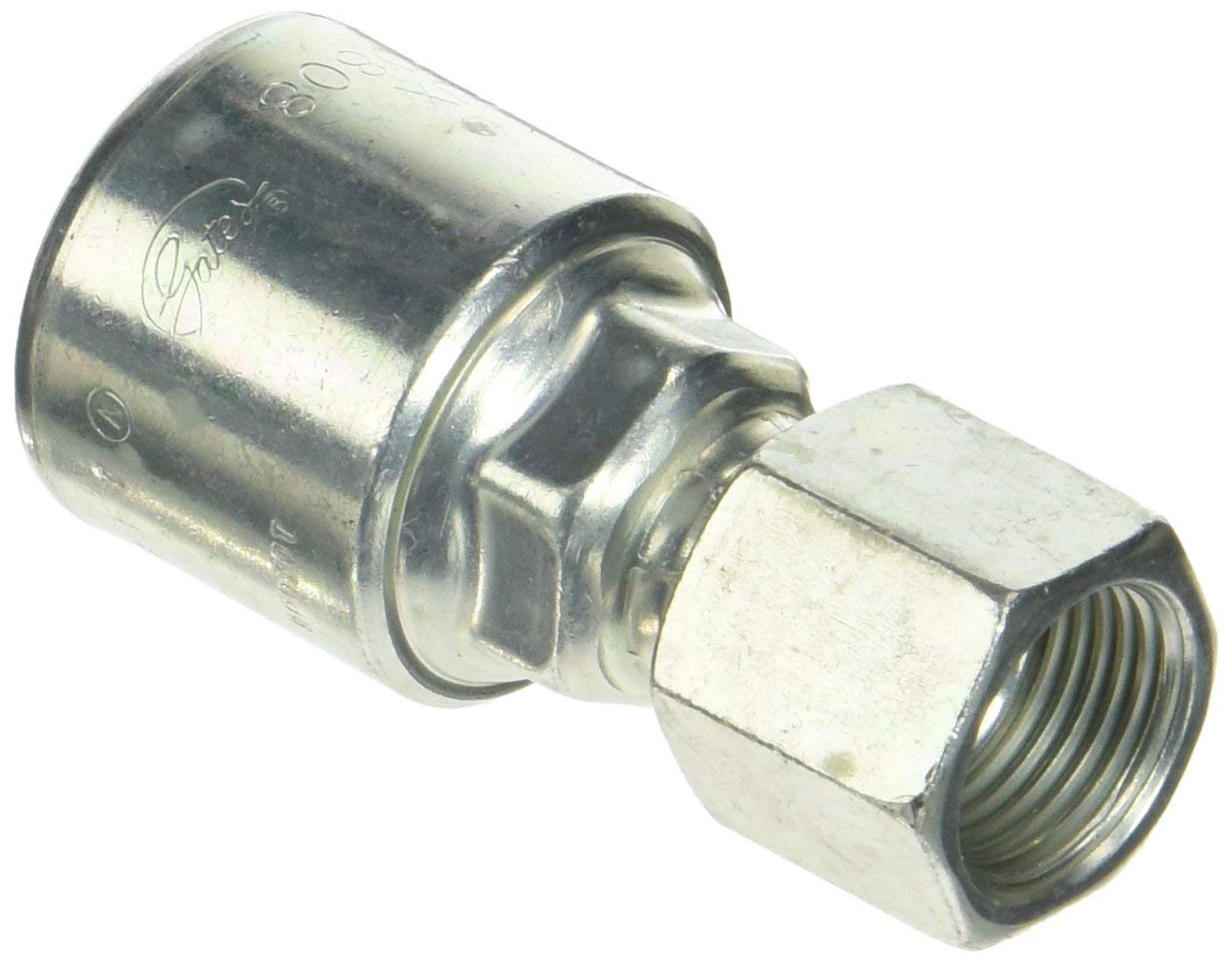

COUPLING 10G-10FJX

Gates MegaCrimp Hydraulic Hose Coupling

                                                             ***Legend***

• Dash Sizes - 4 = 1/4", 6 = 3/8", 8 = 1/2", 10 = 5/8", 12= 3/4", 16 = 1"
• Suffix - 45 = 45 Degree, 90 = 90 Degree, S = Short, M = Medium, L = Long, X = Swivel
• Fitting Abbreviations - G / GE = Hose Size, MP = Male Pipe, FP = Female Pipe, MFFOR = Male Flat Face O-Ring, FFOR = Flat Face O-Ring, MORB = Male O-Ring Boss, MJ = Male JIC, FJ = Female JIC, FL = Flange Fitting, FG = Female Grease, FSX = Female Swivel 45°, MFA = Male Flareless Adapter (Tube Adapter)

Robust “bite-the-wire” crimp; Tested to an industry-leading 1 million impulse cycles; Simplifies inventory management; Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard; Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard; The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
